BIRT Flash and Gadget Scripting

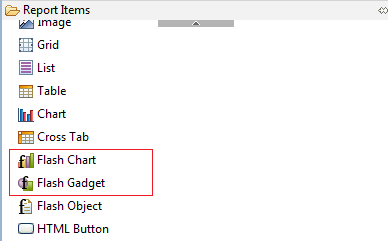

In my last post I blogged about how Chart Scripting works in BIRT. If you are using Actuate BIRT, you also will have access to Flash Charts and Gadgets. Scripting for these two report items is very similar to the standard Chart scripting model.



Flash Charts
Currently Flash charts support 14 script event triggers that can be hooked to make chart modifications.



The event firing order is shown below.



As you can see the order is very similar to that of normal BIRT charts. The before and after dataset filled events are fired first for each dataset (category and value). Next the beforeRendering event is fired and then the before and after draw series events are fired for each series. Between the before and after draw series events the before and after draw data point events are fired for each point in the series. The before and after draw series events (and the events contained in them) are fired for each series in the chart. After all series are processed, the before and after draw effect events are fired for each effect in the chart. Effects can be used to alter the chart at runtime, allowing font manipulation, blurring, glowing, shadowing, beveling, and animation of different objects of the chart. Effects are added to the chart using the effects editor.



Using the beforeDrawEffect event script you can alter any of the effects added to the chart. For example to turn off the shadow effect in the above chart you could use the following script.



function beforeDrawEffect( effect, fcsc )
{
var effectName = "MyTitleEffect";
if ( effectName.equals( effect.getAction().getName() ) ){
if( effect.getAction().getShadow() != null ){
effect.getAction().getShadow().setEnabled(false);
effect.getAction().getFont().setEnabled(false);
}
}
}



The getEffect().getAction().getName() call returns the name of the effect as defined in the effect editor. This can be used to determine which effect definition your script is operating on. The getAction allows access to the different effect features. Note that if the effect is not enabled the getter method for the effect will return null. In the above script we first check to see if the getShadow method returns null before turning it off.

Finally the afterRendering event is triggered.

These events function much the same way as described in my earlier post. You will notice that event function prototypes are just a little different. For example instead of a chart and icsc parameter you will get a flashChart and fcsc parameter in certain events. For practical purposes these are just extended chart and icsc objects and still provide most of the standard object features. For example to set the chart title to the value of a report parameter using the reportContext, you could use a script like the following.



function beforeRendering( flashChart, fcsc )
{
var parmChartTitle = fcsc.getExternalContext().getScriptable().getParameterValue("MyChartTitle");
flashChart.getChart().getTitle().getLabel().getCaption().setValue(parmChartTitle)
}



Flash Gadgets
BIRT Flash Gadget report items are used to display data in a unique dynamic graphic. Currently Actuate BIRT supports thermometer, cylinder, bullet, spark line, meter gauge or linear gauge gadgets. These gadgets also support server side scripting.

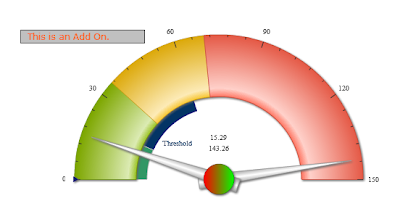

Twelve event triggers are supported and can be used to alter how the gadget is displayed. The events that are triggered will depend on the gadget and which features the gadget is using. For example this meter gadget:



Produces the following event order.



The beforeRendering event is called first and can be used to modify the flash gadget before it is rendered. Next before and after draw region events are trigger for each of the three regions in the meter gadget. This gadget contains two thresholds, so the before and after threshold events are triggered next for each threshold. The gadget also contains two needles so the before and after draw needle events are fired. The threshold label contains a font effect and the threshold areas are animated. This produces before and after draw effect triggers for each. Finally the afterRendering event is triggered.

Retrieving Gadget Values
BIRT Flash Gadgets use value definitions to link the gadget to a BIRT dataset. The definitions are assigned in the Gadget Editor. The runtime values for these definitions can be retrieved in script using the gadget object. For example, in the beforeRendering you could use the following script:


function beforeRendering( gadget, fgsc )
{
var vals=gadget.getResultValues();
for( i = 0; i < vals.size(); i++ ){
if( vals.get(i).getValue() > 20 ){
//do something
}
}
}


The number of result values will depend on the gadget. For example, In a Spark Line gadget there will be multiple values. In a meter gadget, there will be a result value for each needle value.

Region Events
You can customize the colors, transparency, labels, and range values of any region using the beforeRendering or beforeDrawRegion scripts. See the example below.


function beforeDrawRegion( region, fgsc )
{
if( region.getLabel().equals("A") ){
region.setColor("00ff00");
}
//Display value range of region.
region.setLabel( "(" + region.getStartValue() + ", " + region.getEndValue() + ")" );

}

function beforeRendering( gadget, fgsc )
{
//First Region
gadget.getRegion().get(0).setEndValue(25);
//Second Region
gadget.getRegion().get(1).setStartValue(25);




Threshold Events
Thresholds, like regions can also be customized using script. Virtually anything that is set in the designer can be changed in an event trigger. For example:


function beforeDrawThreshold( threshold, fgsc )
{
if( threshold.getLabel().equals("MyThreshold") ){
threshold.setShowValueInside(true);
threshold.setShowValueOnTop(false);
threshold.setStartValue(10);
threshold.setColor("0000ee");
// Display the value range of threshold.
threshold.setLabel( "(" + threshold.getStartValue() + ", " + threshold.getEndValue() + ")" );
}
}

function beforeRendering( gadget, fgsc )
{
gadget.getThresholds().get(0).setMarkerColor("ff0000");
}


In these scripts, we change the starting value, color, label and label location in the beforeDrawThreshold. The marker color is also changed in the beforeRendering script.

AddOn Events
BIRT Gadgets support the concept of an AddOn. An AddOn allows the designer to place images, text, and various shapes on top of the gadget. If the gadget contains an AddOn the before and afterDrawAddOn events will be triggered, allowing you to customize the AddOn at runtime. For example, the following script customizes two AddOns.


function beforeDrawAddOn( addOn, fgsc )
{
// Change add-on styles.
if ( addOn.getName().equals("TitleAddOn") )
{
addOn.setLabel( "Meter Gauge" );
addOn.setFontColor( "ff0000" );
addOn.setFontSize( 28 );
addOn.setY( 35 );
}
else if ( addOn.getName().equals( "ArcAddOn" ) )
{
addOn.setFillColor( "ffff00" );
}
}


AddOns can even be created and placed on the gadget at runtime. For example the following script adds a text AddOn to the gadget using the beforeRendering event.


function beforeRendering( gadget, fgsc )
{
importPackage( Packages.com.actuate.birt.flash.gadgets );
importPackage( Packages.com.actuate.birt.flash.gadgets.impl );

// Add a text add-on.
var textAddOn = GadgetsFactory.eINSTANCE.createTextAddOn();
textAddOn.setAddOnType( AddOnType.TEXT );
textAddOn.setName("DescAddOn");
textAddOn.setShowAddOn(true);
gadget.getAddOns().add( textAddOn );
gadget.setZOrderPosition(1);

textAddOn.setLabel("This sample demonstrates how to add an add-on by scripting.");
textAddOn.setX(2);
textAddOn.setY(20);
textAddOn.setFontSize( 12 );
textAddOn.setHorizontalAlignment( HorizontalAlignmentType.LEFT );
textAddOn.setVerticalAlignment( VerticalAlignmentType.TOP );
textAddOn.setWrap( true );
textAddOn.setTextBoxBorderColor("000000"); //Black
textAddOn.setTextBoxBackgroundColor("c0c0c0");
textAddOn.setWrapMaxWidth( 30 );
textAddOn.setWrapMaxHeight( 50 );

}


Needle Events
If your gadget contains a needle, the before and afterDrawNeedle events will be triggered. Using script the needle can be customized. The size, color, shape, and various other properties of the needle can be customized. These events are passed a NeedleWrapper instance, which can be used to get the specific needle type. For example the following two scripts differentiate between a normal gadget needle and a meter gadget needle.


function beforeDrawNeedle( needleWrapper, fgsc )
{
importPackage( Packages.com.actuate.birt.flash.gadgets );
importPackage( Packages.com.actuate.birt.flash.gadgets.impl );
// Change needle styles.
needleWrapper.getNeedle().setShape( Shape.DIAMOND );
needleWrapper.getNeedle().setFillColor("2cf83a");
needleWrapper.getNeedle().setBorderColor("007f00");
}

function beforeDrawNeedle( needleWrapper, fgsc )
{
//Set Needle size to 25%
needleWrapper.getMeterNeedle().setSize(25);
needleWrapper.getMeterNeedle().setBackgroundColor("ff0000");
}



Effect Events
The effect events were described above in the flash charting section.

Several examples used in this post are available at BIRT-Exchange.
